ABS espesyal machin bòdi bòdi

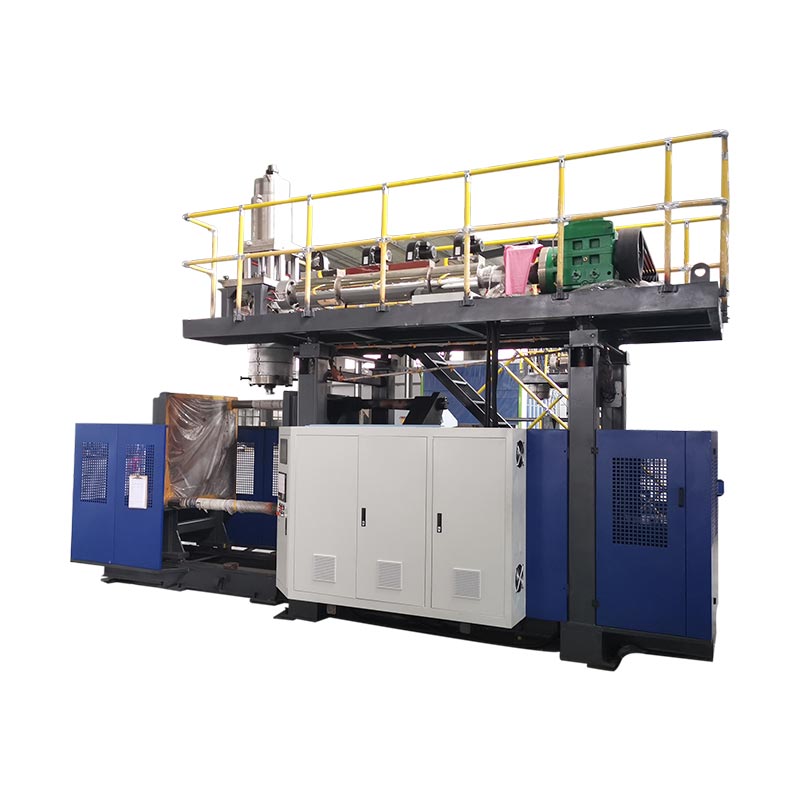

Model:KGB110A-ABS

Transfòme pwodiksyon pati oto ou a ak KGB110A-ABS yo, dènye kri ABS espesyal machin nan bòdi bòdi ki redefini ekselans pou Auto Pati Kònen aplikasyon pou machin bòdi! Pafè pou deflèkteur ABS kònen bòdi machin bezwen tankou spoilers ak dashboards, li ede ou mennen mache a otomobil ak bon jan kalite siperyè.

Volim: /Pwa: 25t

Voye ankèt

Deskripsyon Product Specification Application

KGB110A-ABS se yon modèl espesyal moule machin bòdi pou moun ki pati oto Manifakti. ABS espesyal machin nan bòdi moule ak pi wo èkstruzyon presyon ak mouche nan Kreye sifas pafè pou konsève pou tan pòs-pwosesis la. Ak machin Customized Platen nan anfòm pwodwi endistri a, sove depans envestisman machin.

Karakteristik ak avantaj

Fouye fon nan potansyèl la nan teknoloji ka bay sèl-kouch solisyon pwodwi wo-fòs pou kliyan ki pouswiv pri-efikasite; Kapab tou konstwi doub-kouch oswa milti-kouch estrikti konpoze ak pwofesyon ekskiz
Pèmèt operasyon kle nan 110A-ABS kònen machin nan bòdi ak yon sistèm pouvwa gaya ak serye idwolik. Transmisyon kontinyèl ak ki estab pouvwa asire ouvèti ajil ak pwisan ak fèmen nan mwazi an, operasyon lis ak efikas nan èkstrudeuz la, e menm nan fè fas a alontèm ak gwo entansite pwodiksyon travay, ekipman an ka toujou kenbe bon kondisyon ak stably pwodiksyon bon jan kalite pwodwi.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB110A-ABS
Specifications
1	Max container capacity	/
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	25 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1100 MM x1600 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MM×1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servooil pump motor power	30 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	28 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
