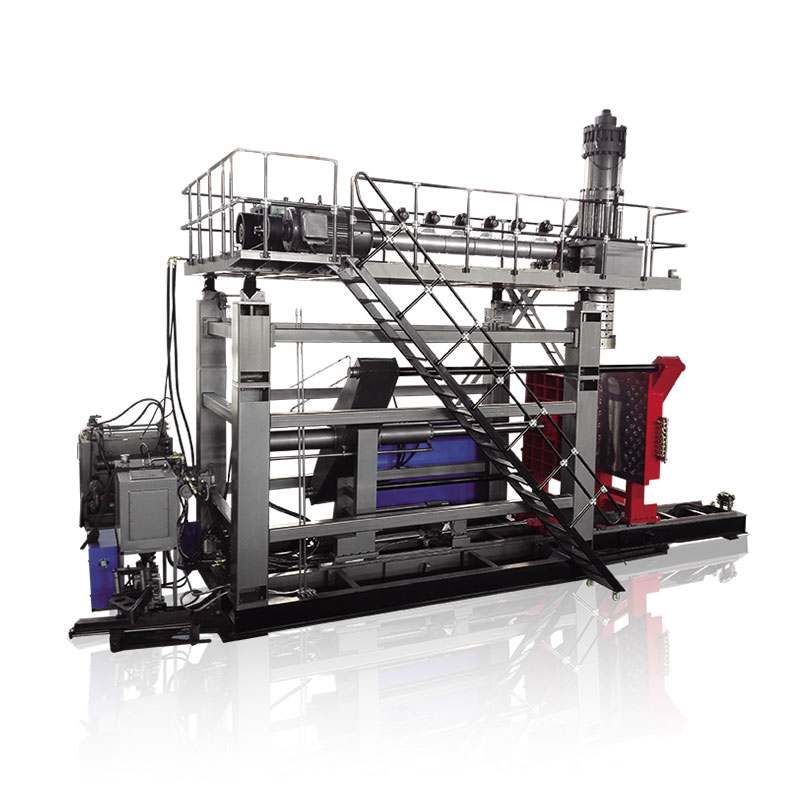

1000L tank dlo IBC akimile kònen bòdi machin

Model:KGB1000L- IBC

Eksperyans fòs la ak estabilite nan tank yo dlo KGB1000L IBC akimile kònen bòdi machin, prezante yon pwa jeneral depase 55 tòn pou misyon pou minimize Vibration ak deplasman. Diagonal doub mare baton yo ak santral twa-silenn blocage asire menm distribisyon estrès atravè mwazi an, amelyore presizyon pwodiksyon an.

Volim: 1000LPwa: 55t

Voye ankèt

Deskripsyon Product Specification Application

Sa a 1000L tank dlo IBC akimile kònen bòdi machin enkòpore avanse prensip mouche teknoloji ak pwodiksyon milti-kouch pou depans redwi ak durability pwodwi amelyore. Ideyal pou pwodwi gwo-kapasite resipyan, ki gen ladan dlo tank aplikasyon pou bòdi machin, machin sa a se ki fèt espesyalman pou tanbou IBC jiska 1000L, fè li apwopriye pou pwodwi tanbou anbalaj chimik, gwo gwosè machin lwil oliv machin, ak plis ankò. Kontakte nou jodi a pou yon quote Customized ak eksplore konpetitif nou tank dlo bòdi machin pri.

Karakteristik ak avantaj

Ekipman an jeneral ka rive jwenn plis pase 55 tòn, efektivman diminye Vibration ak deplasman machin, ak amelyore presizyon pwodiksyon ak estabilite.
● Diagonal Double mare baton ak santral twa-silenn mwazi blocage, modèl la se pi plis respire ensiste epi yo pa fasil defòme
● Pwodiksyon milti-kouch diminye depans pwodiksyon ak amelyore durability pwodwi
● Apwopriye pou manifakti a nan gwo pwodwi plastik tankou gwo fò tou won dlo, tank depo, resipyan chimik, elatriye.

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L

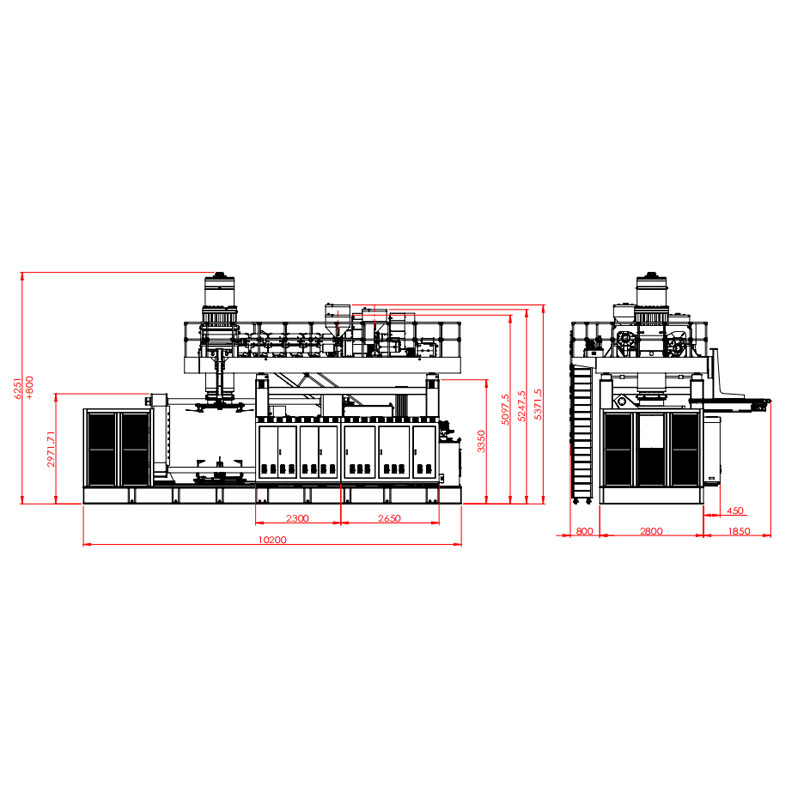

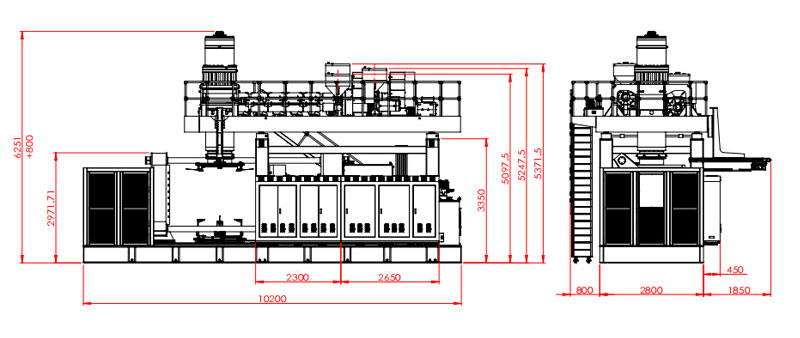

3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
