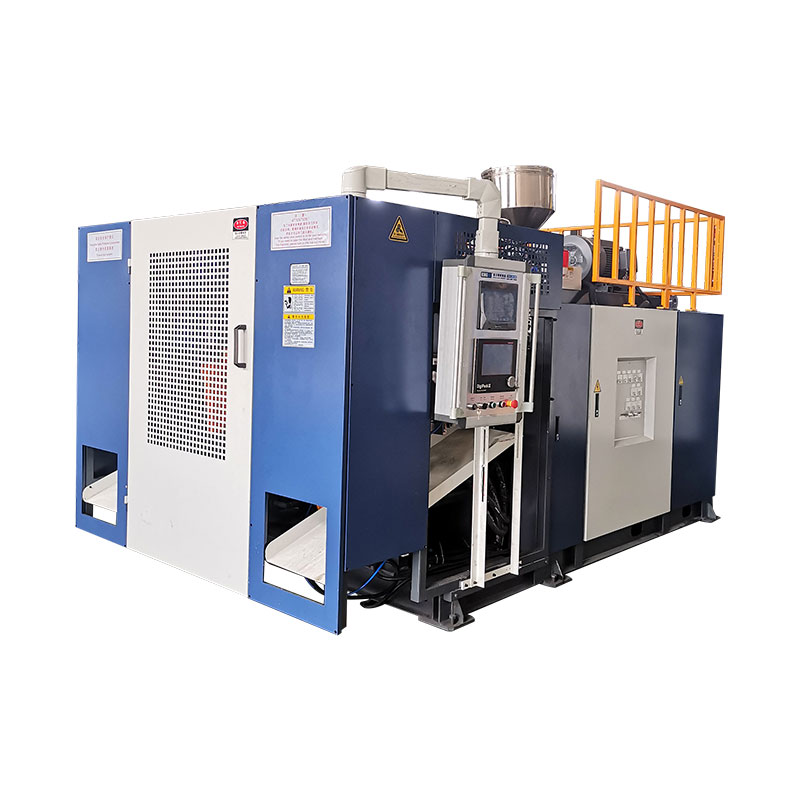

5L Double Station Kònen bòdi machin

Model:KGB5D

Maksimize pwodiksyon ou a ak versatile 5L nou an doub estasyon kònen bòdi machin. Sa a machin pèfòmans-wo ofri konfigirasyon fleksib, ki gen ladan yon 2, 3, oswa 4 konfigirasyon tèt milti-mouri, li akomode nan yon pakèt domèn gwosè veso.

Volim: 5LPwa: 5.2t

Voye ankèt

Deskripsyon Product Specification Application

Soti nan ti-volim boutèy nan gwo kontenè 5L, sa a 5l doub estasyon kònen machin bòdi asire pwodiksyon efikas ak bon jan kalite ki konsistan. Ideyal pou aplikasyon pou divès kalite, ki gen ladan lesiv detèjan pake solisyon machin bòdi, li Delivre pwodiksyon eksepsyonèl ak maksimize retounen ou sou envestisman.

Karakteristik ak avantaj

● Double-estasyon translasyonèl mwazi chanje, lè l sèvi avèk tiyo tanpon gaz pou mwazi deplase, efikas ak ki estab
● Tèt la mouri adopte sant manje sant
● Sistèm kontwòl elektwonik la adopte kontwòl Mitsubishi PLC, ak bouton manyèl endepandan fasilite koreksyon operatè ak ajisteman.
● Volim nan pwodwi maksimòm se 5L, ki se ekipman an moule pi pito pou pwodiksyon an mas nan mwens pase 2-5L.
● Dapre karakteristik, li kapab divize an kouch sèl, kouch doub, twa kouch, liy transparan, elatriye.
● Sistèm idwolik la adopte konsepsyon diferans, efikasite segondè ak vitès vit

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
