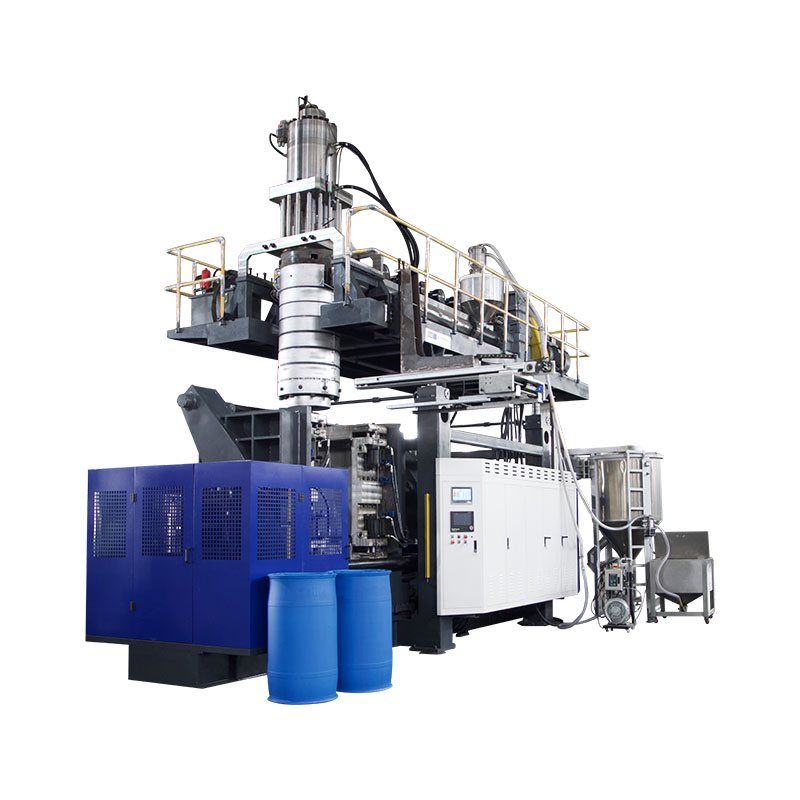

250L akimile Chimik barik espesyal Moulding Moulding machin

Model:KGB200L/LP

Sa a espesyalize 250L akimile chimik barik espesyal moule machin bòdi ki fèt espesyalman pou pwodwi-wo kalite 220L doub-bag barik chimik ble. Itilize yon fiks louvri-fèmen mekanis ak yon oblik bra doub drawbar sistèm synchronous blocage, li asire ki estab ak dirab blocage mwazi.

Volim: 250LPwa: 39T

Voye ankèt

Deskripsyon Product Specification Application

Patante doub-kouch, doub-table akimilatè tèt la, konbine Avèk yon inite èkstrudeur pèfòmans-wo, delivre rezilta eksepsyonèl. Sa Chimik barik kònen bòdi machin enkòpore yon moog 100 epesè Kontwolè, bra robo, ak anba sistèm mouche pou efikasite ranfòse. Tanbou yo pwodwi satisfè estanda kalite sevè, ki gen ladan pase la 3-mèt gout tès ak jwenn sètifikasyon Nasyonzini.

Karakteristik ak avantaj

Doub-anvlòp orizontal bar sant piki depo silenn mouri tèt
● Atenn kapasite pwodiksyon segondè nan konsepsyon optimize ak presizyon fabrikasyon, ki kapab pwodwi 17-20 moso/èdtan
● barik yo pwodwi ka pase tès la gout 3m ak konplè Nasyonzini sètifikasyon

200l barik pwa: 12-15 kg

Materyèl: HMWHDPE

Epesè: 3.5-4 mm

Sa a se espesyalize Chimik barik Ble bòdi machin ki fèt pou pwodiksyon efikas nan-wo kalite 220L doub-bag barik chimik ble. Itilize yon mekanis fiks louvri-fèmen, yon bra oblik doub drawbar sistèm blocage synchronous, ak yon patante doub-kouch, doub-akimile tèt akimilatè mouri, li delivre pèfòmans eksepsyonèl.

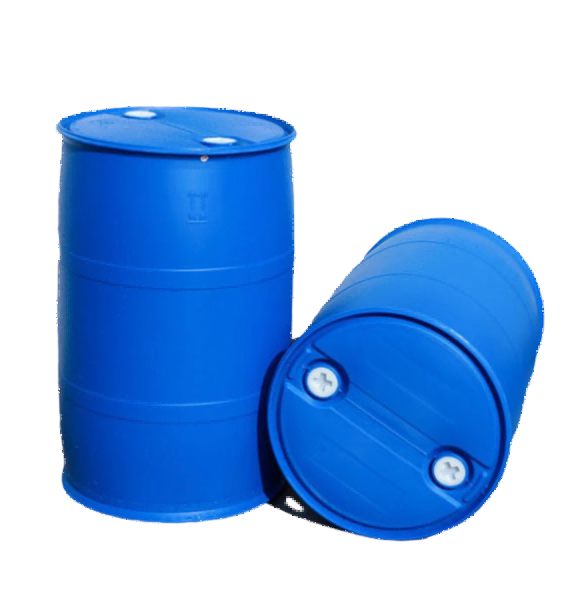

Double layer 220L double-ring chemical barrel blow molding machine

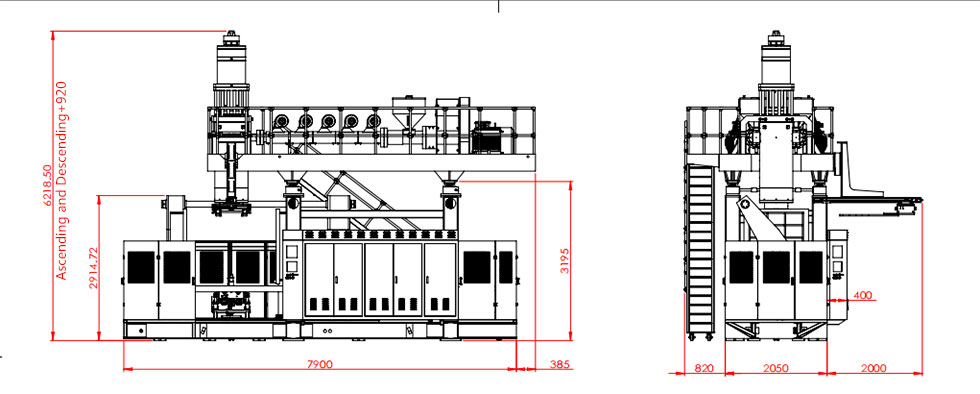

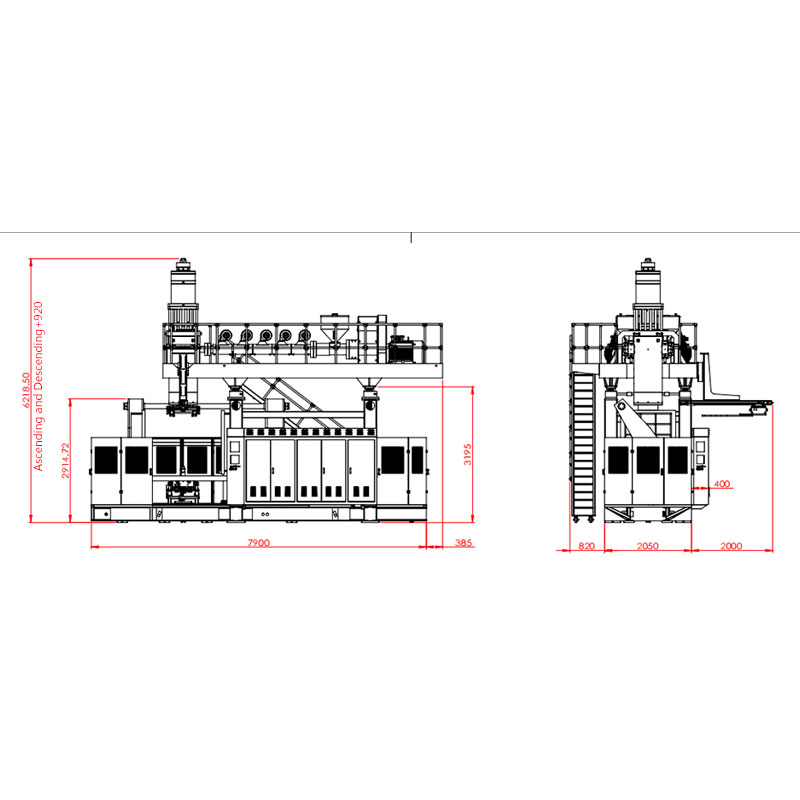

Desen

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
