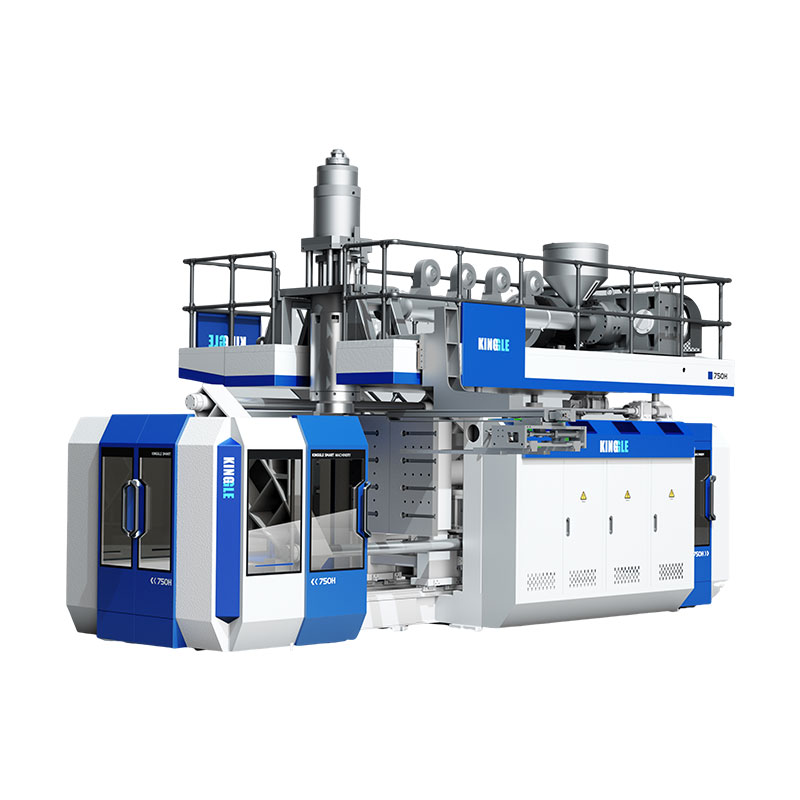

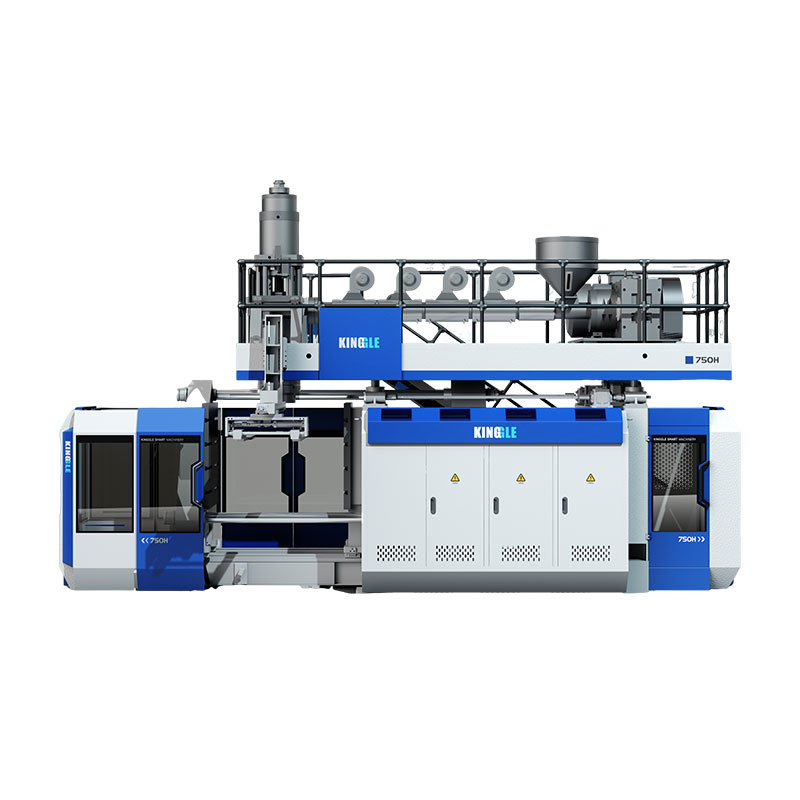

60L akimile kònen bòdi machin

Model:KGB90A

Sa a ouvèti fiks ak fèmen machin bòdi bòdi, prezante doub rale baton synchronous blocage ak lwil silenn dirèk presyon bloke mwazi, delivre pèfòmans segondè ak efikasite. Ekipe ak yon sistèm sèvè idralik pou repons vit ak ekonomi enèji, sa a 60L akimile kònen bòdi machin èksèl nan pwodwi nan yon pakèt domèn pwodwi yo, ki soti nan pi piti resipyan nan pi gwo komèsan.

Volim: 60LPwa: 14t

Voye ankèt

Deskripsyon Product Specification Application

Modèl la estanda KGB90A, yon dirijan akimilatè tèt kònen bòdi machin, gen ladan yon Moog 100 kontwolè epesè, bra robo, ak anba sistèm mouche, amelyore pwodiktivite ak bon jan kalite pwodwi. Sa a 60L akimile machin bòdi kònen se ideyal pou aplikasyon pou divès kalite, ki gen ladan chimik tanbou solisyon moule machin bòdi, plastik èkstruzyon kònen bòdi pwosesis machin, ak pwodiksyon an nan barik anbalaj chimik, anpile bokit, tank dlo deyò, tank machin, jwèt, pati oto, bwat zouti, ak baryè trafik.

Karakteristik ak avantaj

Modèl sa a se yon ouvèti mwazi fiks ak kalite fèmti, lè l sèvi avèk yon baton doub mare synchronous mekanis fèmen mwazi, ak lwil la silenn dirèk presyon blocage
● Depo Silenn mouri seri tèt
● Volim maksimòm 60L
● Apwopriye pou barik anbalaj chimik, gwo jwèt, ab machin tailfins, elatriye.
● Sèvi

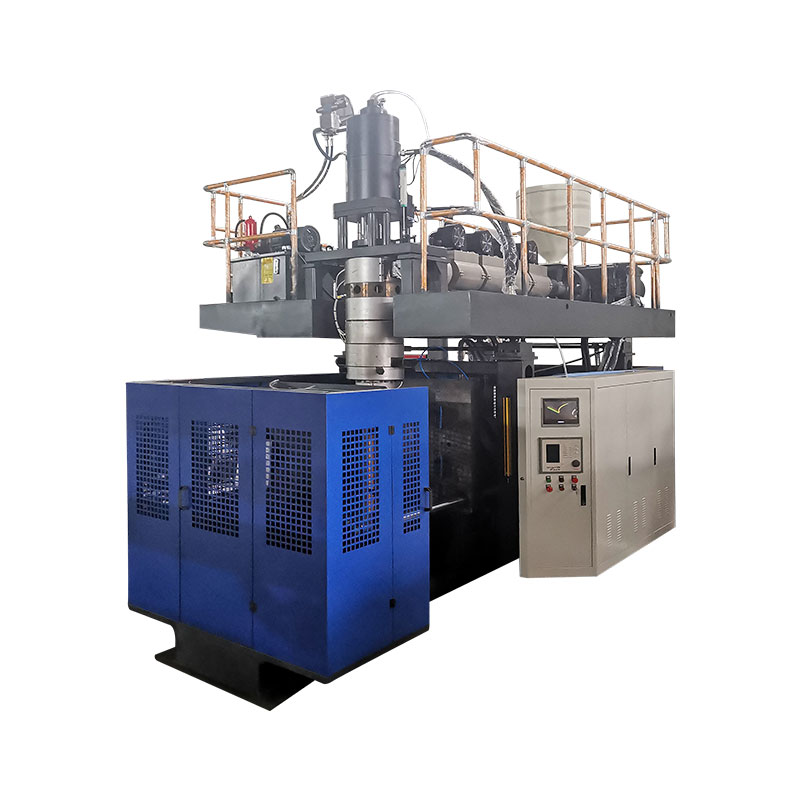

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

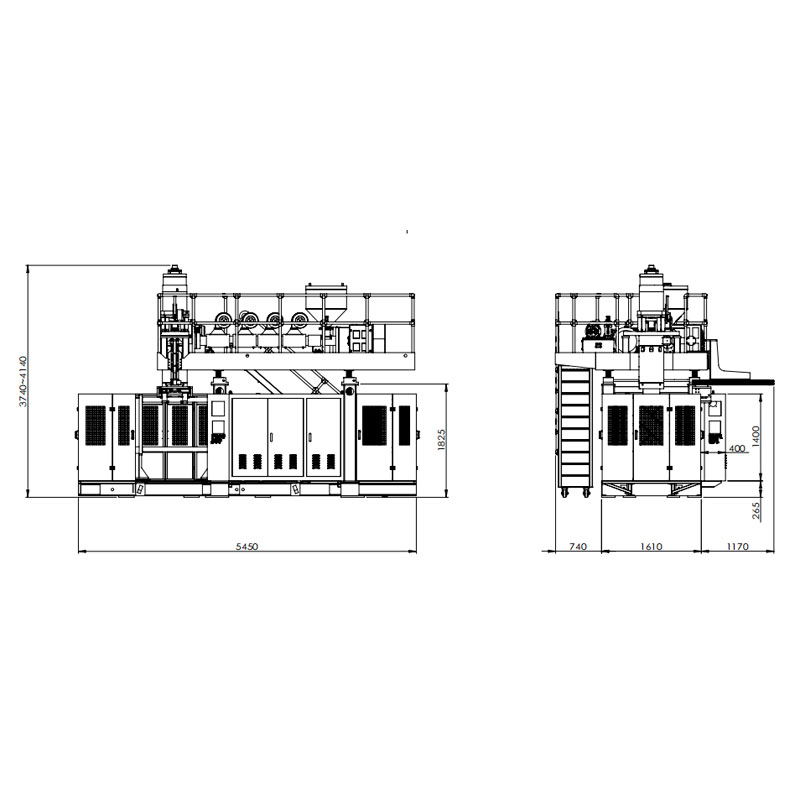

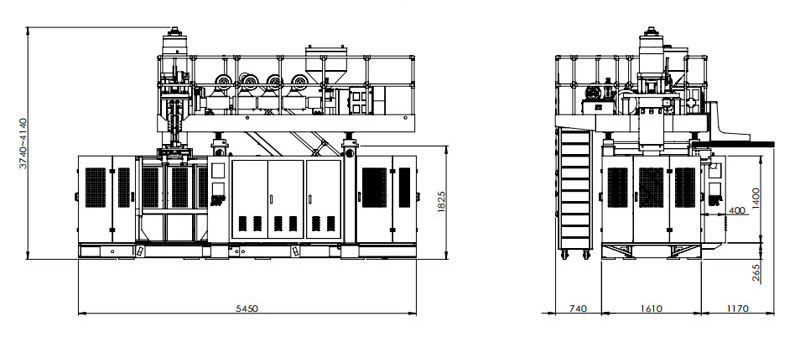

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
