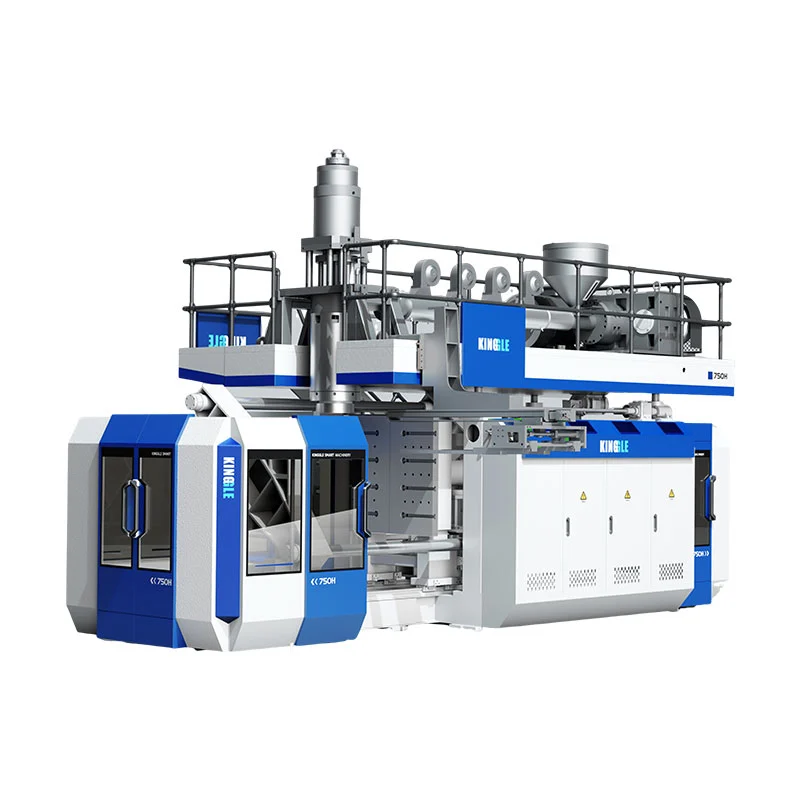

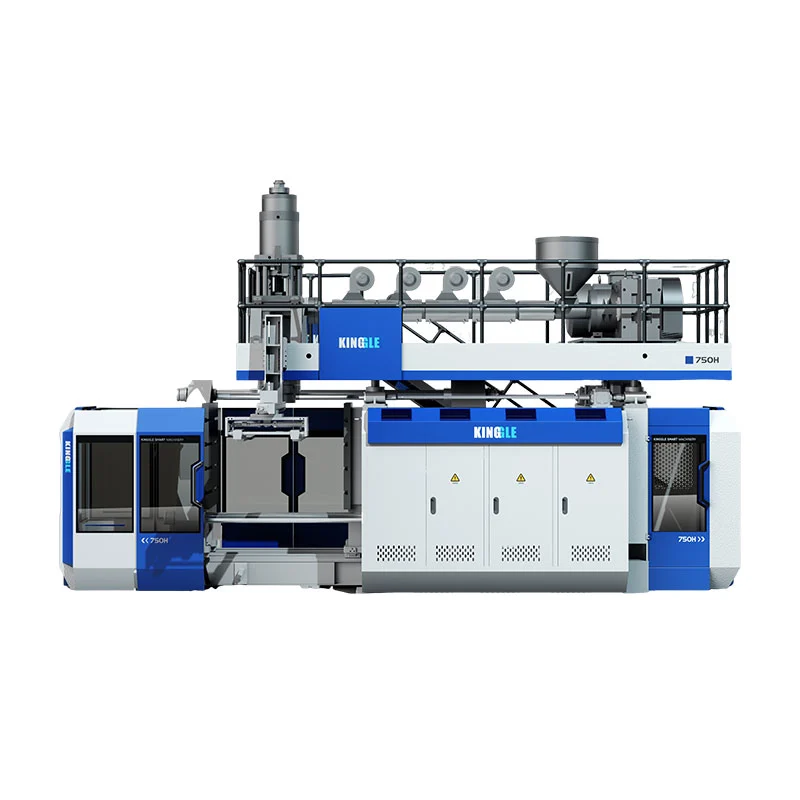

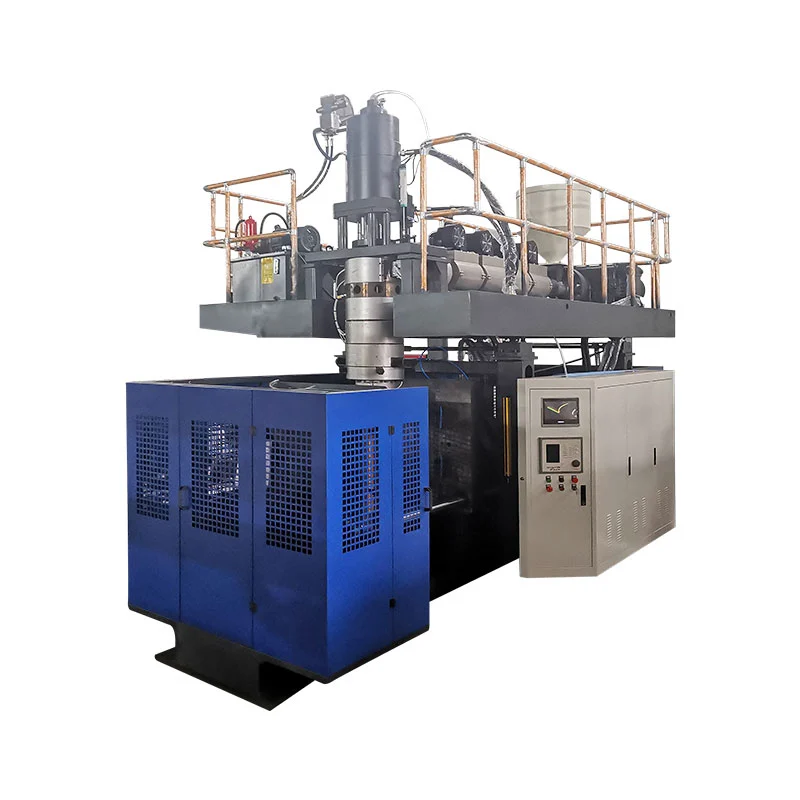

60L akimilatè kònen bòdi machin

Model:KGB90AP

Pou KGB90AP, yon enèji-efikas 60L akimilatè kònen bòdi machin prezante doub kouch oswa doub koulè kònen bòdi teknoloji machin. Li nan ki fèt espesyalman pou doub-kouch ak doub-koulè 60L aplikasyon pou bòdi machin bòdi, tankou bwat zouti bwatye machin bòdi/ tank depo endistriyèl/ 60L resipyan, li asire alontèm fyab ak ekonomi pri.

Volim: 60LPwa: 15t

Voye ankèt

Deskripsyon Product Specification Application

KGB90AP 60L akimilatè Kònen bòdi machin gen doub sistèm èkstruzyon Ka anfòm kouch doub oswa kondisyon pwodiksyon doub koulè pou yon ekstansyon pou pwodwi sonnen.
Gen ladan yon Moog 100 kontwolè epesè, bra robo, ak anba mouche Sistèm, amelyore pwodiktivite ak bon jan kalite pwodwi. Machin sa a versatile se ideyal pou aplikasyon pou divès kalite, ki gen ladan chimik tanbou kònen bòdi solisyon machin, plastik èkstruzyon kònen bòdi pwosesis machin,.

Karakteristik ak avantaj

Modèl sa a se yon ouvèti mwazi fiks ak kalite fèmen, lè l sèvi avèk yon baton doub mare Synchronous mwazi fèmen mekanis, ak lwil la silenn presyon dirèk sere
Depo silenn mouri seri tèt
Maksimòm volim 60L
Apwopriye fotoolbox, elatriye.
Sèvi ak teknoloji inik, mwazi kranpon sistèm presyon, gwo blocage Fòs, vit mwazi vitès blocage, sik pwodwi kout

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

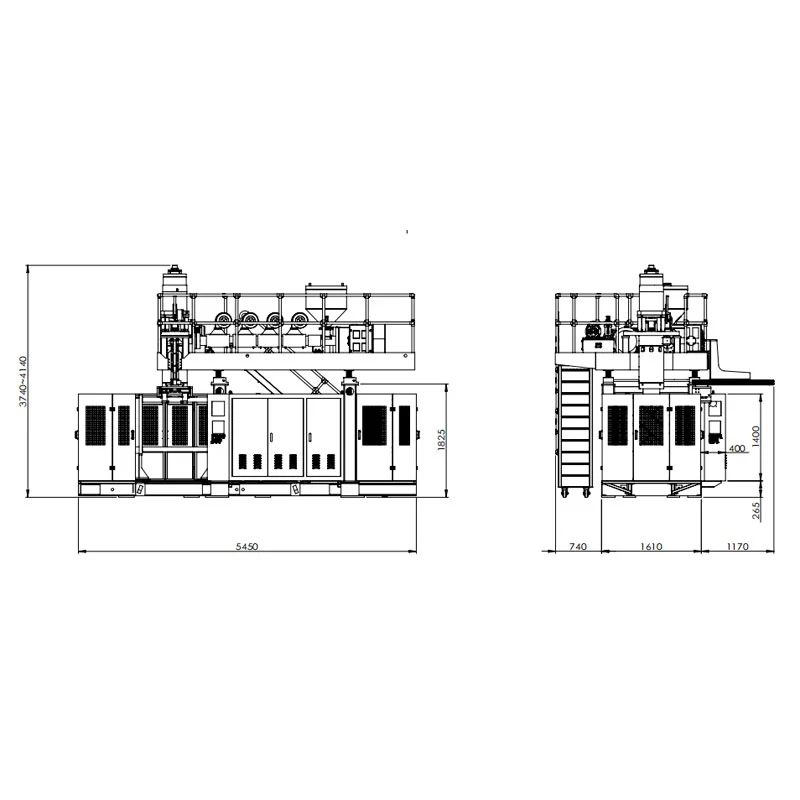

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
